Accurate data service for marine forecasting and disaster prevention

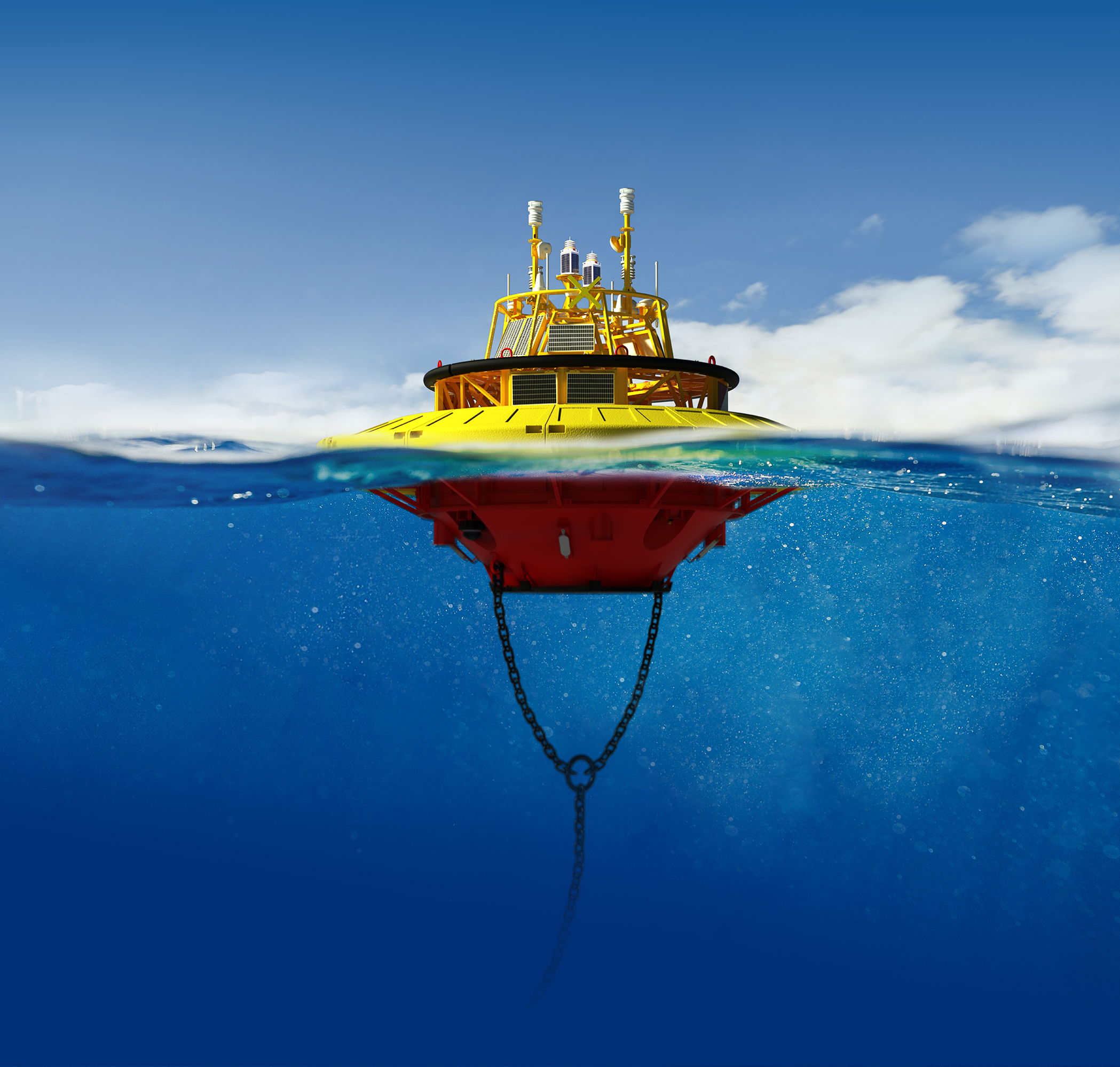

Offshore metocean measurement system：BA-MO-NX4

BA-MO-NX3 offshore metocean measurement system could provide accurate hydrological and meteorological data to support marine engineering, weather forecasting and monitoring, and related fields.

  • To provide data services for marine meteorological monitoring and forecasting.

  • To provide data support for offshore engineering and facility decisions.

  • To provide data support for marine disaster forecast warning modeling.

Security

  • Abidance by international HSE standards

  • Data is encrypted for transmission and securely stored in the customer's local server

Convenience

  • Feasible to be transported by truck or sea

  • Deployed by tug boat or crane vessel

  • Easy to be maintained with modular design

Reliability

  • Sufficient power supply

  • Full redundancy to eliminate single-point failures

Accuracy

  • High raw data quality from specific buoy design

  • Built-in data quality control algorithm

  • Excellent property of system along with waves

Resilience

  • High survival rate under collisions, and structure design with multiple cabinets to prevent sinking if any water ingress

  • The design could adapt to extreme weathers (violent storms, high temperatures, freeze and snow, rainy season, etc)

Excellent collision endurance design

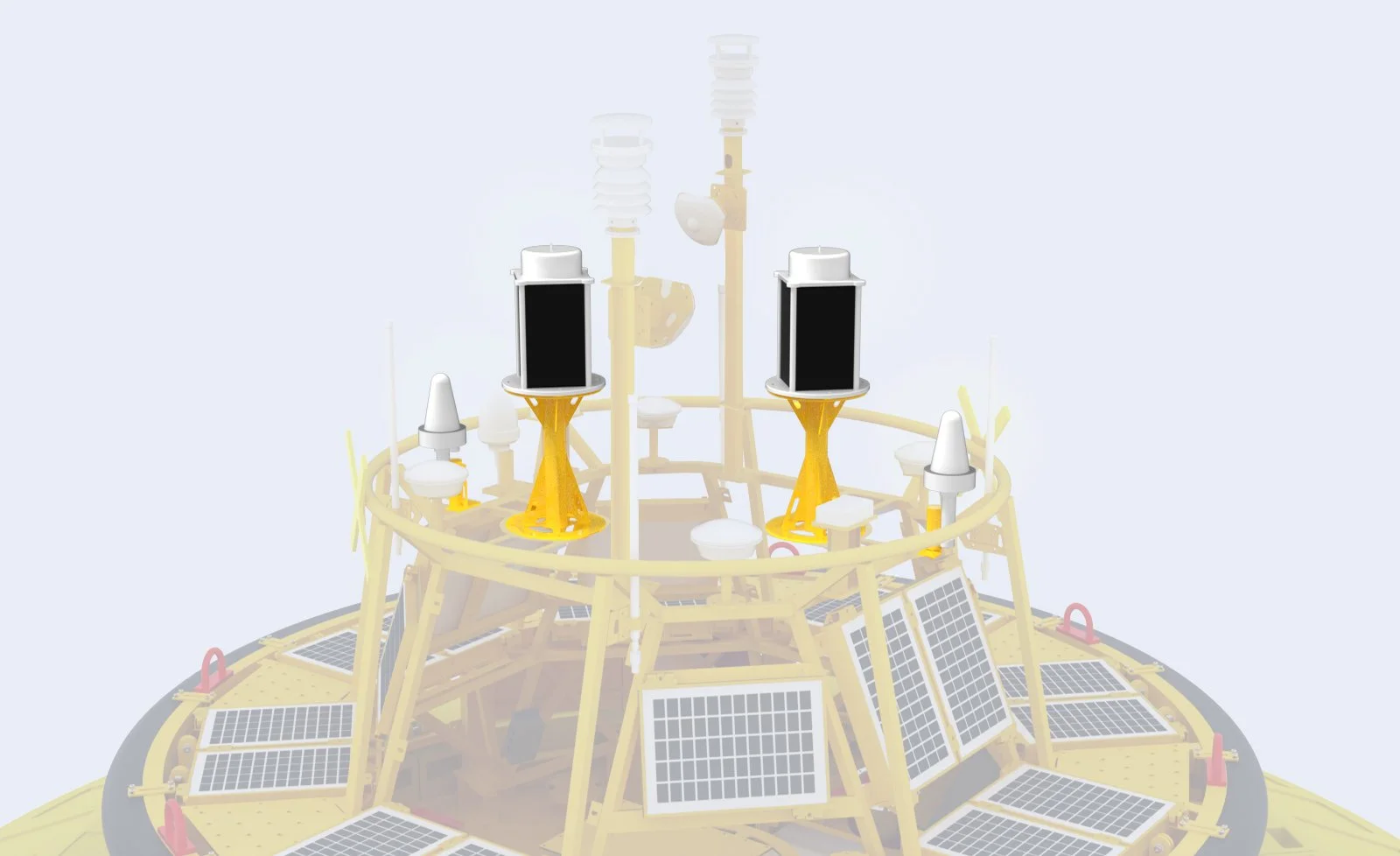

The combination of dual AIS system and dual navigation light provides redundant protection and reliable navigation information for the system, helping the vessels to make better navigation decisions and reduce navigation accidents.

Dual AIS, dual navigation lights

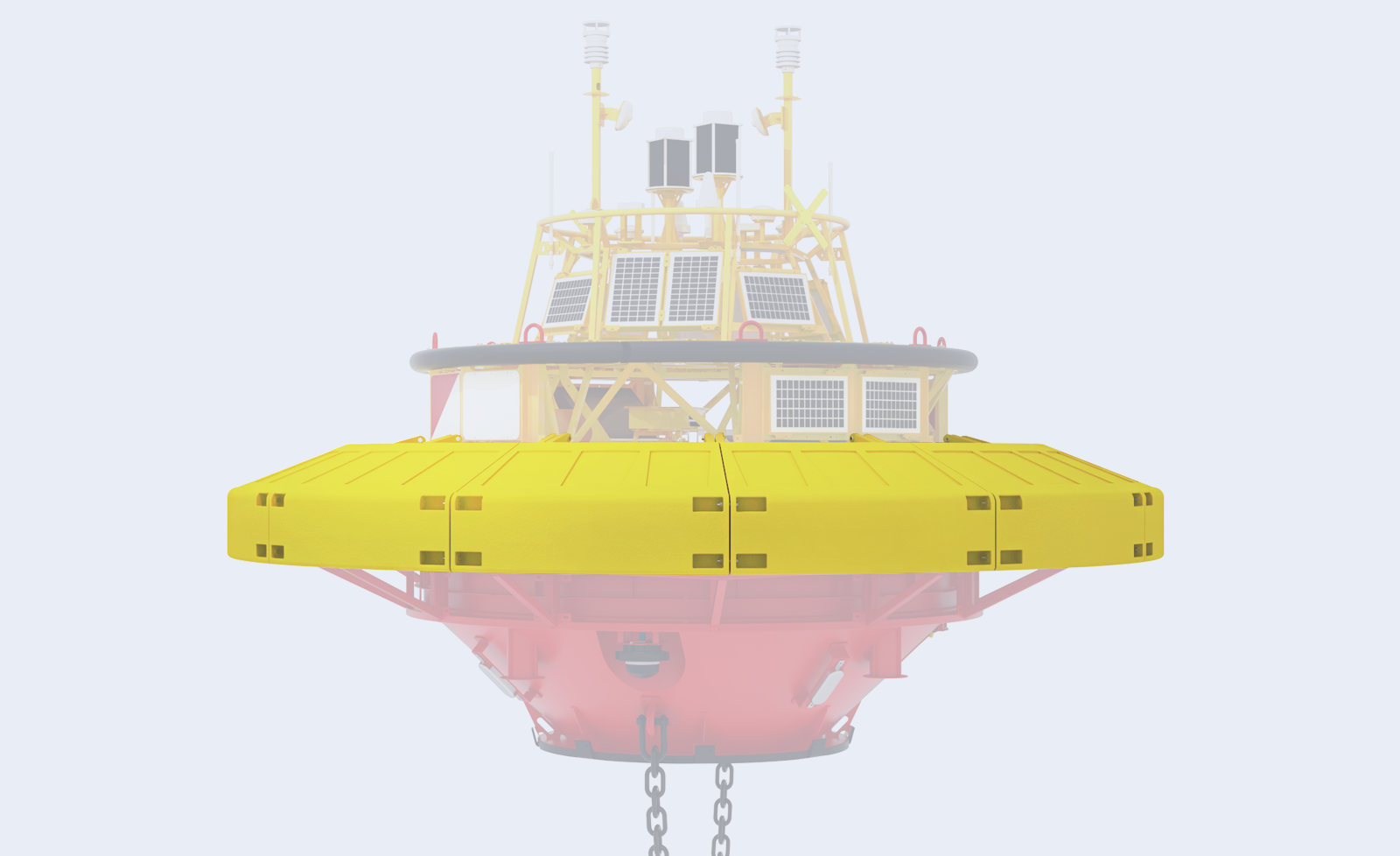

Annular PE floats with internal foaming not only provide excellent system properties along with waves, but also effectively withstand the impact force, reduce the physical shock and vibration of the system in the marine environment, and protect the internal components from damage.

Annular PE floats

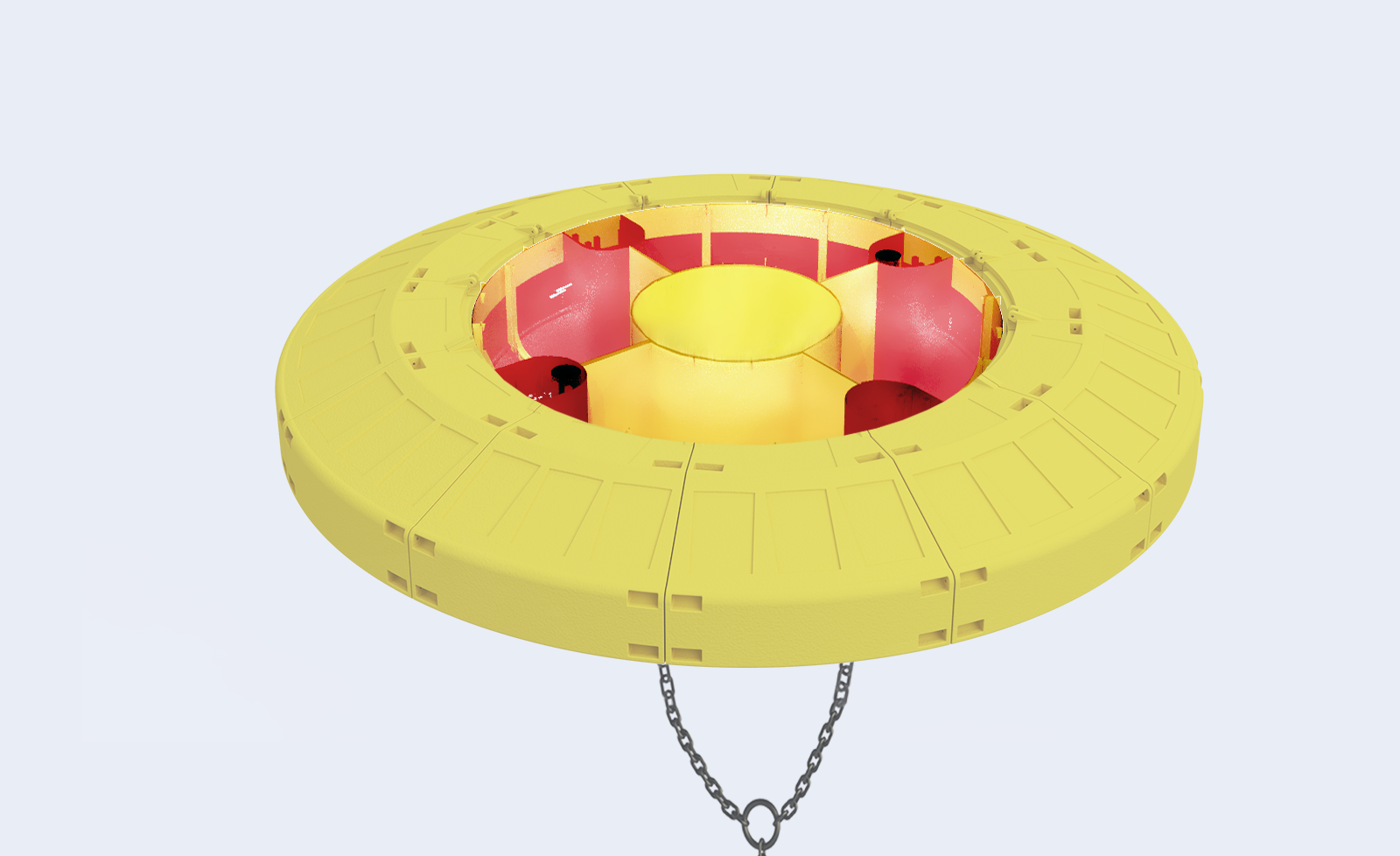

The multiple cabinet structure increases the safety of the system by separating the internal space and preventing the overall sinking.

Multiple cabinets

Sufficient power supply for one-year offshore measurement free of maintenance

  • Multiple sets of energy storage batteries provide a stable power supply.

  • Multiple groups of solar panels can optimize the collection and utilization of solar energy to ensure continuous and stable power supply.

  • Dual redundant wind turbines(total generating power 2 * 350W) fully use offshore wind to provide continuous power to the system.

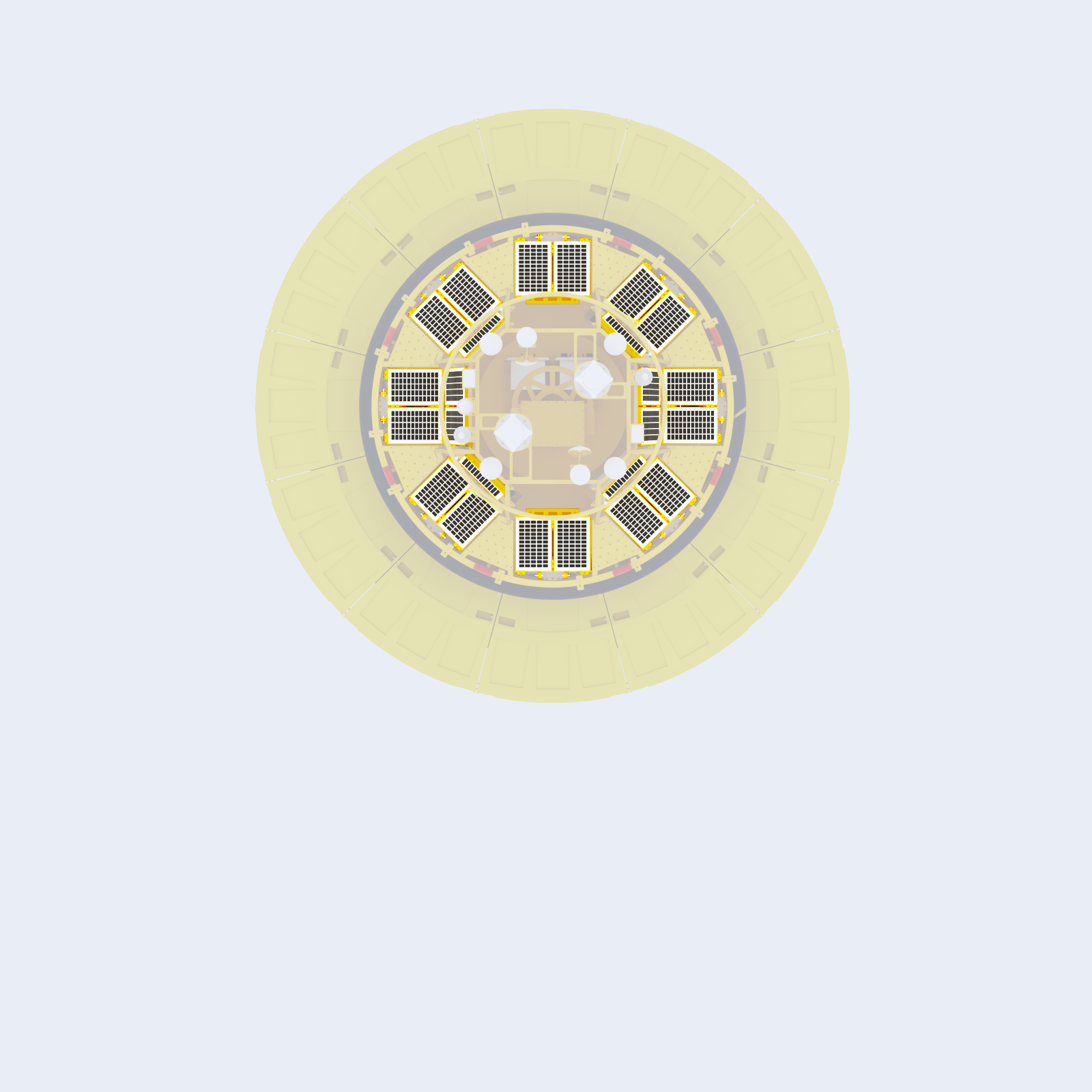

Solar panels(total generating power 560W, max. expansion to 1520W)

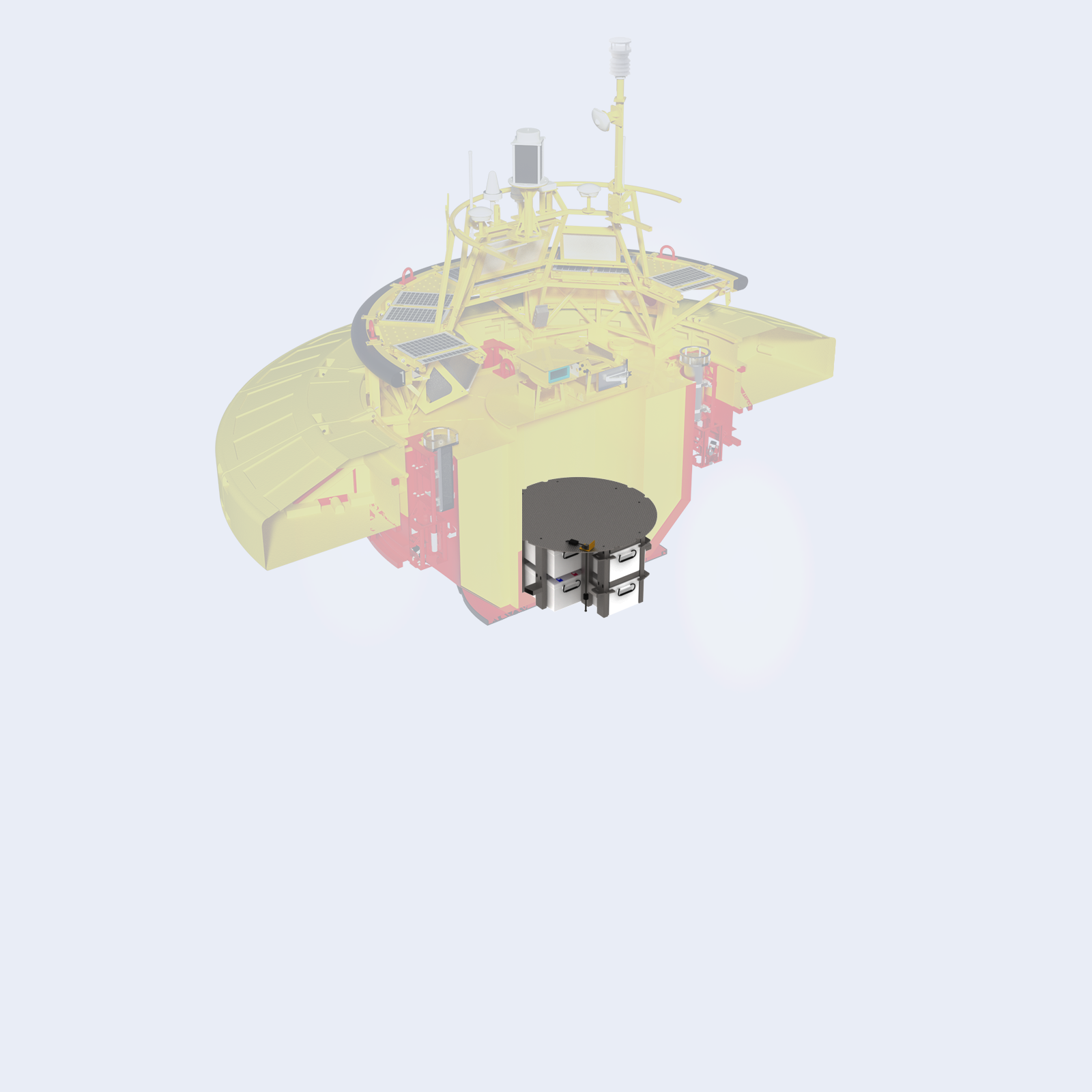

Energy storage batteries (total power 24kWh)

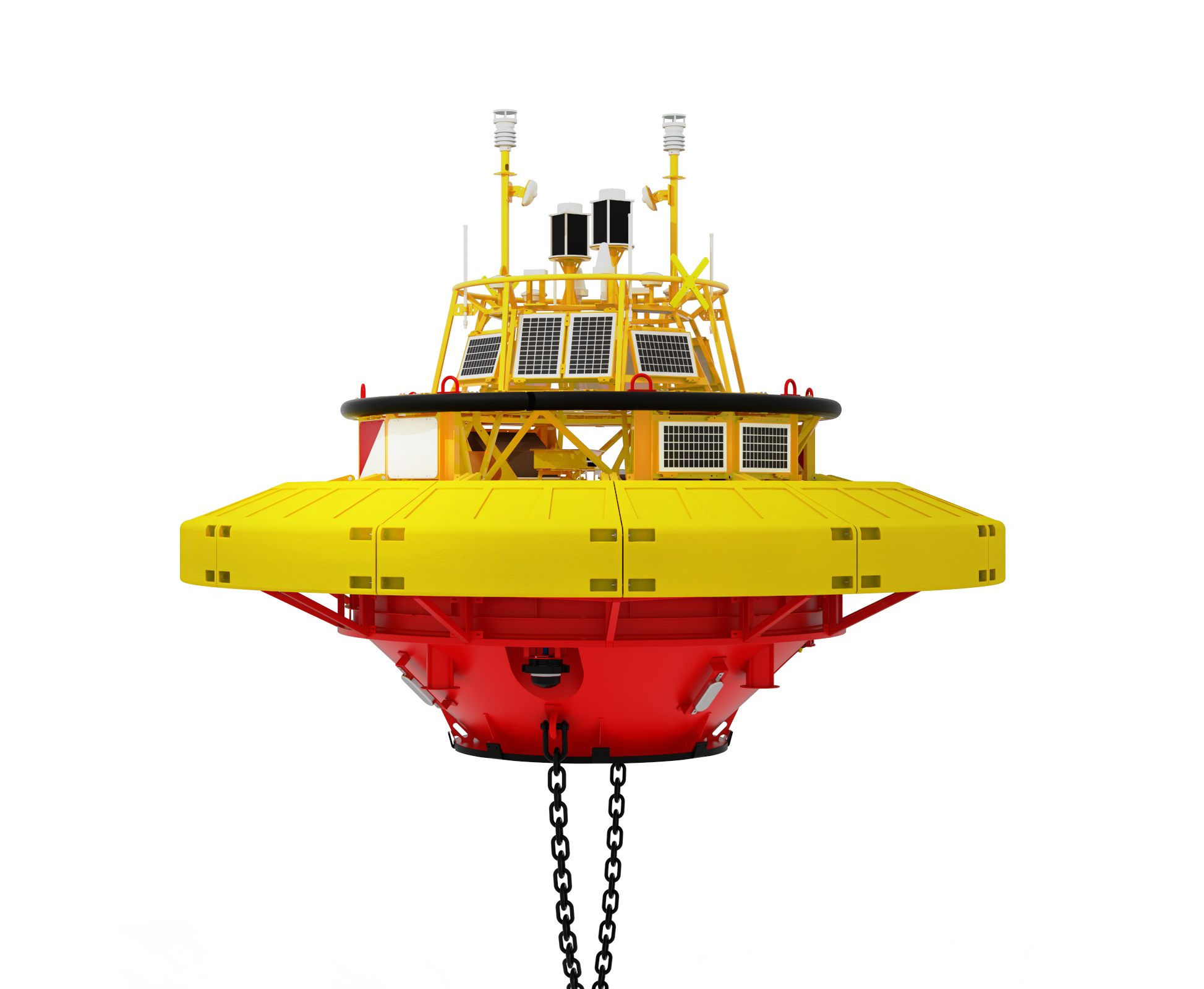

Product Specifications

    • Diameter: 4.8m

    • Height: 3.1m

    • Mass: 4.8t

    • Net buoyancy: 5t

    • Structure: multiple cabinets

    • Temperature, humidity, and atmospheric pressure

    • Rainfall

    • Wind speed and direction

    • Solar radiation

    • Wave (significant wave height, one-tenth wave height, maximum wave height, wave period, mean wave period, zero-crossing wave period, wave direction)

    • Current speed, current direction

    • Water depth/water temperature/salinity

    • Bird and bat monitoring

    • Sea mammal and fish monitoring

    • Water environmental monitoring

    • LAN

    • Satellites: SBD SAT messaging module, other Broadband SAT data modules (optional)

    • Mobile networks: 2G/3G/4G

    • WiFi: 2.4GHz/5GHz*2

    • Local ethernet connection

Get in touch to learn more.
